Description

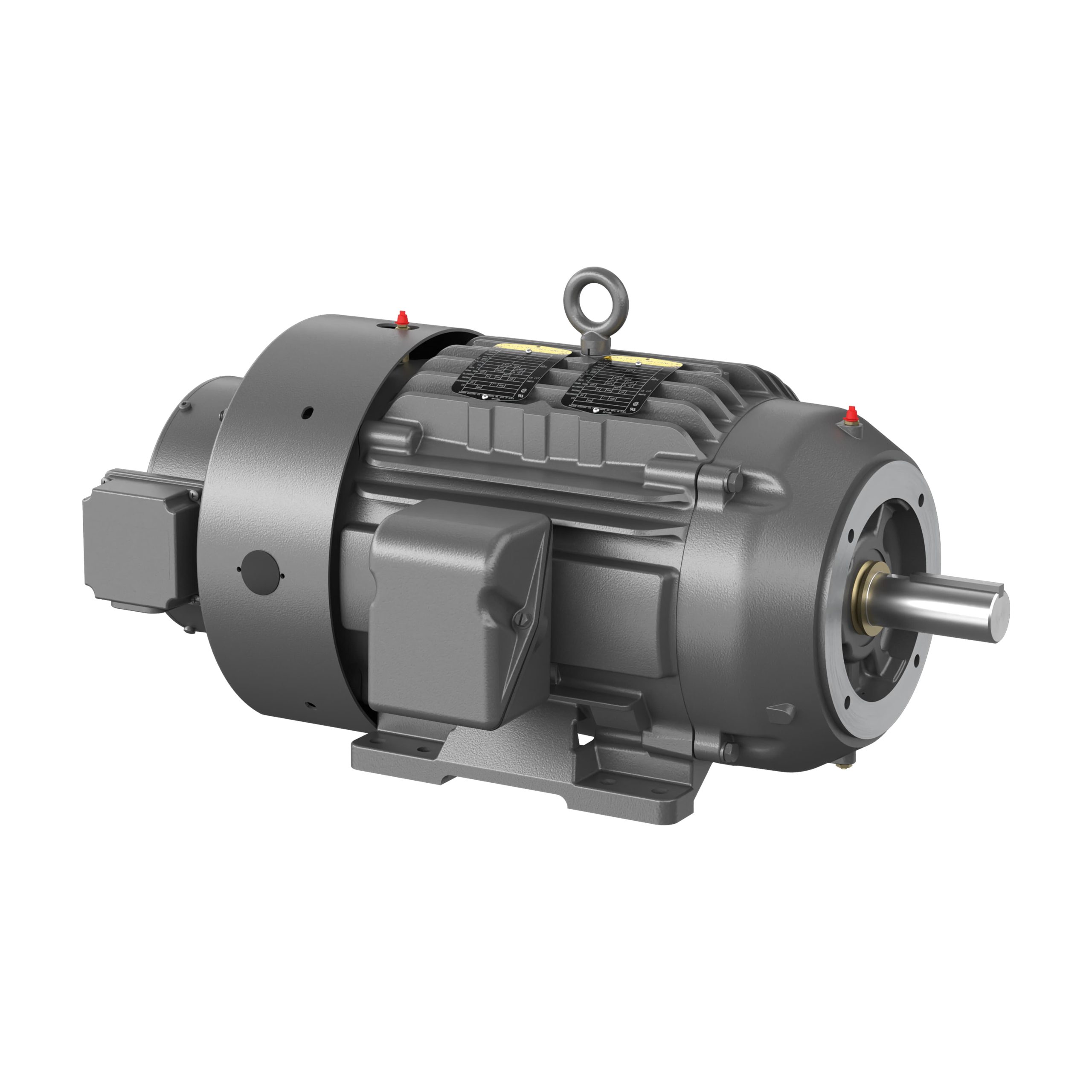

15 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEBC, 256TC, F1
Additional information
| Weight | 289 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | VS Master Vector duty |
| Specification Number | 09T110T124Z1 |
| ENCLOSURE | TEBC |
| FRAME SIZE | 256TC |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 4 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 15 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1765 |
| Base Speed | 1800 |
| Max Speed | 5000 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 29.22 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 14.6 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 83 |
| RATED EFFICIENCY | 92.40% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | A |
| BEARING DE | 6309 |
| BEARING ODE | 6208 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 1.6250 in |
| Inverter Duty | Inverter Duty |
| UPC | 7.81568E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 8091 |
| Style | |
| Discount Symbol | VS2 |
| Online Price | 5950.84959 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
