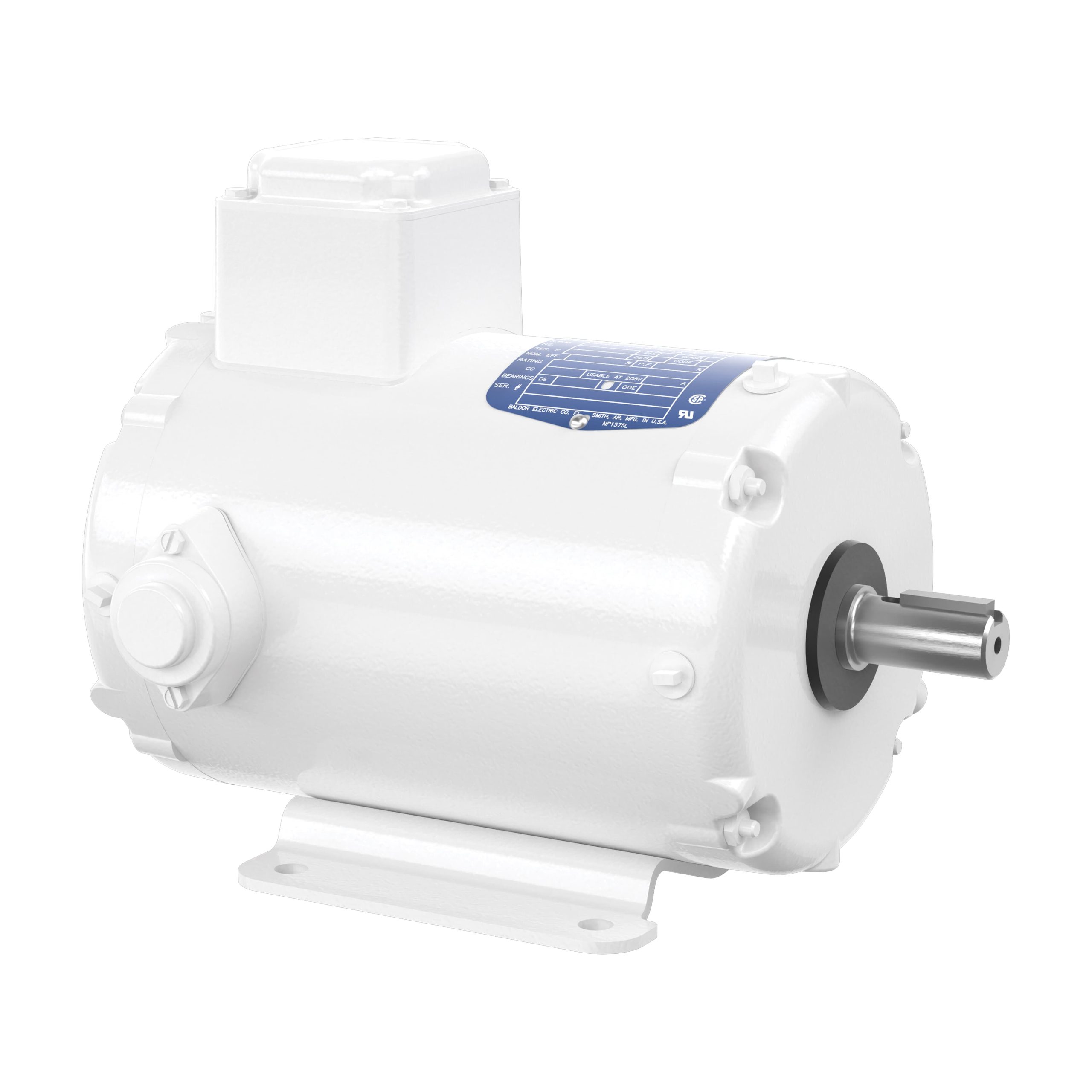

WDNMM3546-4
3/4 HP, 1800 RPM, Three Phase, 460V, 60HZ, TENV, D80, B3
SKU: WDNMM3546-4
Category: foot mounted
Description
3/4 HP, 1800 RPM, Three Phase, 460V, 60HZ, TENV, D80, B3
Additional information
| Weight | 39 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | White Washdown, Cut Saw, three phase |
| Specification Number | 34M821R446G1 |
| ENCLOSURE | TENV |
| FRAME SIZE | D80 |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 3/4 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1700 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | IEC |
| OVERALL LENGTH | 12 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 1.5 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 79 |
| RATED EFFICIENCY | 75.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | |
| BEARING DE | 6205 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 °C |
| Mount Type | B3 |
| Shaft Diameter | 0.7480 in |
| Inverter Duty | Not Inverter |
| UPC | 7.81569E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 1523 |
| Style | |
| Discount Symbol | WDW |
| Online Price | 984.43674 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
