Description

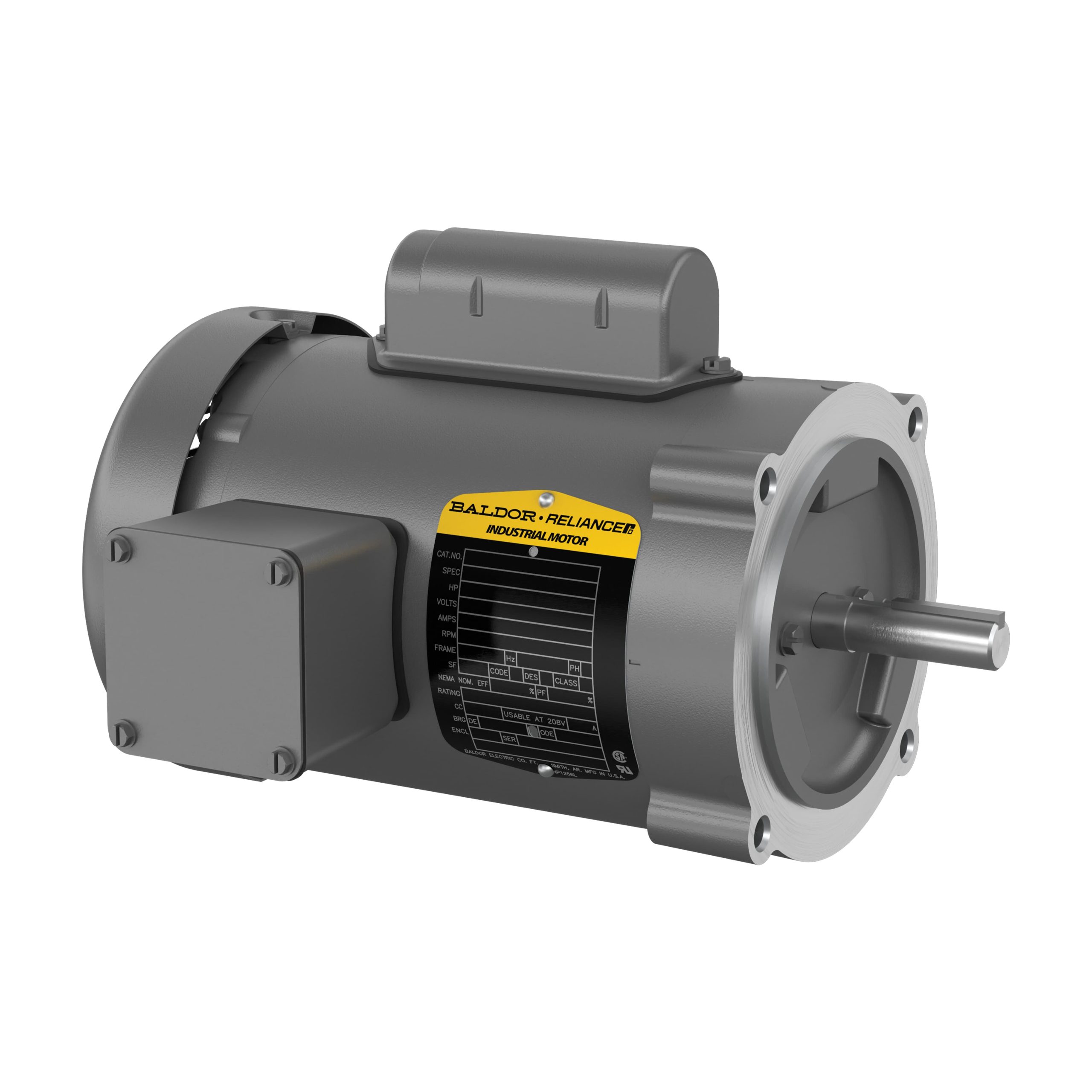

1/3 HP, 1500 RPM, Single Phase, 110/220V, 50HZ, TEFC, 56C, F1
Additional information
| Weight | 17 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | General Purpose, single phase, enclosed |
| Specification Number | 34C63W120 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 56C |
| AGENCY APPROVALS | CE;CSA;UR;WEEE |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | No Mounting |
| HORSEPOWER | 1/3 HP |
| SERVICE FACTOR | 1.35 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1500 |
| SPEED RPM | 1425 1/MIN IP54 IC411 KG10 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 11.35 in |
| VOLTAGE | 115;230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 50 |
| FULL LOAD CURRENT | 6.4/3.2 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 60 |
| RATED EFFICIENCY | 59% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | N |
| BEARING DE | 6203 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Not Inverter |
| UPC | 7.82E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 813 |
| Style | |
| Discount Symbol | 5.00E+01 |
| Online Price | 534.15726 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
