Description

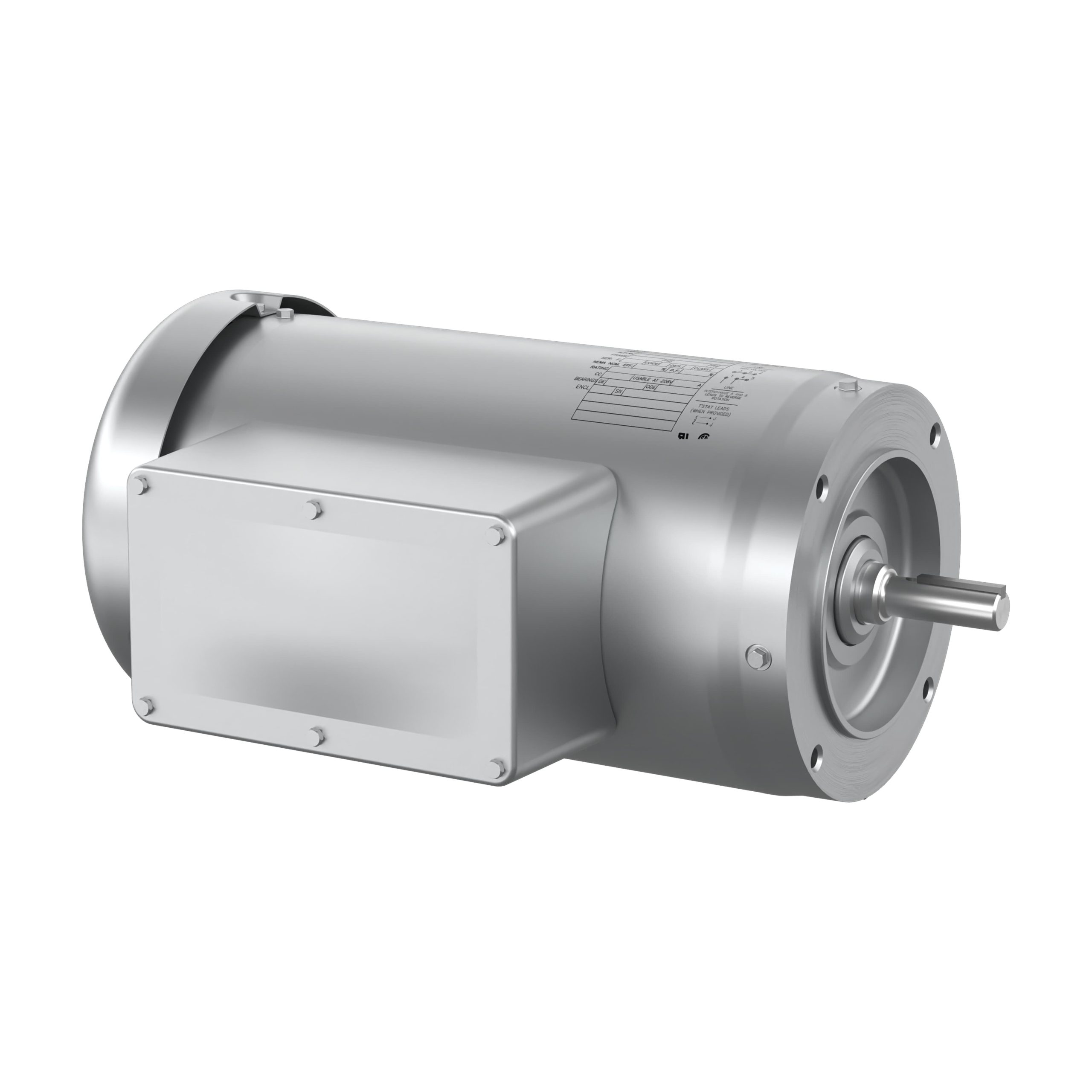

3/4 HP, 1800 RPM, Single Phase, 115/230V, 60HZ, TEFC, 56C, F1
Additional information
| Weight | 47 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Food Safe stainless steel, single phase |
| Specification Number | 35E4628L340G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 56C |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Stainless Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | No Mounting |
| HORSEPOWER | 3/4 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1740 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 14.83 in |
| VOLTAGE | 115;230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Single Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 9.2/4.6 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 75 |
| RATED EFFICIENCY | 70% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | N |
| BEARING DE | 6205 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Not Inverter |
| UPC | 7.81569E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 2557 |
| Style | |
| Discount Symbol | WDF |
| Online Price | 1571.17422 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
