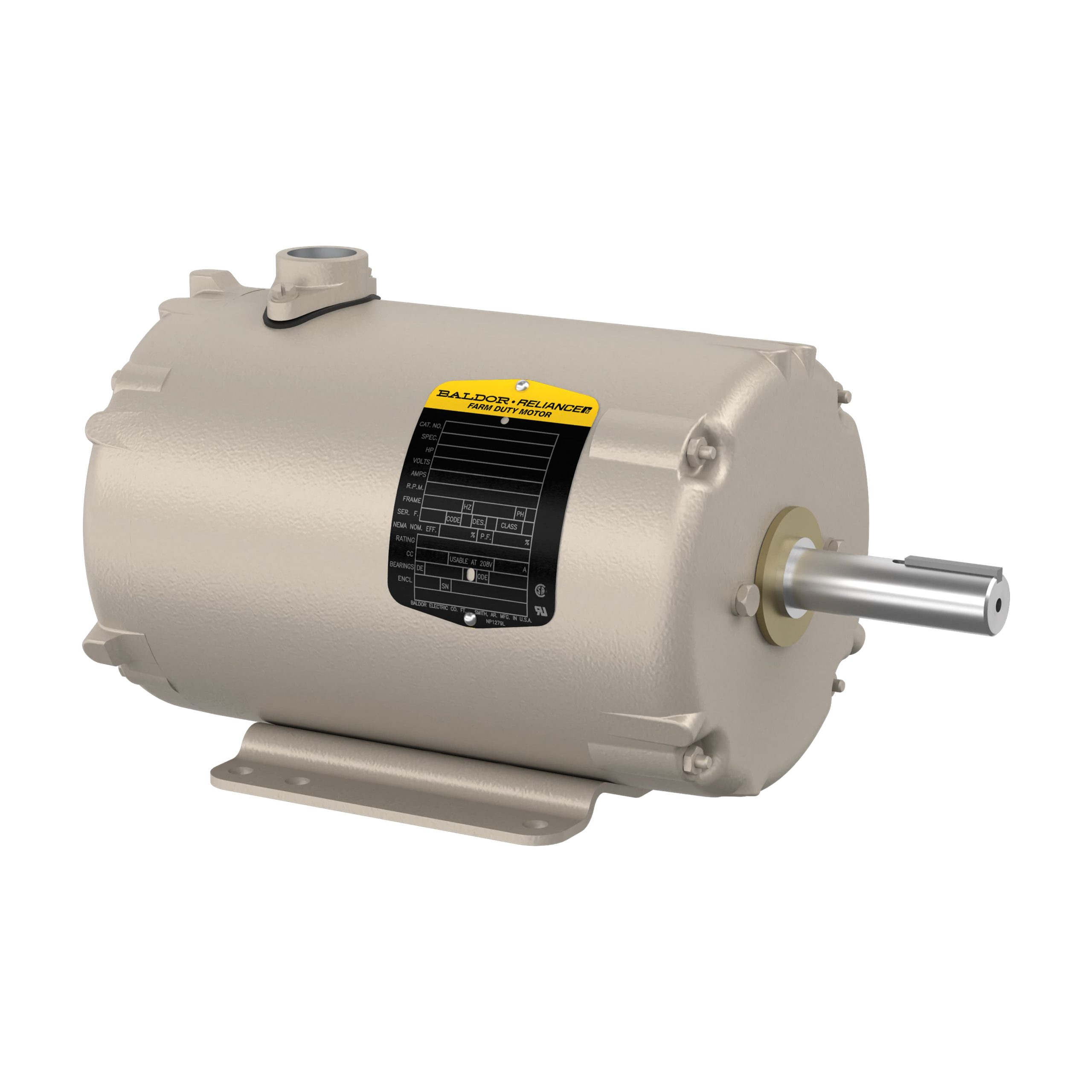

UCME3145
3 – 4.5 HP, 3600 RPM, Three Phase, 208-230/460V, 60HZ, TEAO, 143TYZ, F1
Description
3 – 4.5 HP, 3600 RPM, Three Phase, 208-230/460V, 60HZ, TEAO, 143TYZ, F1
Additional information
| Weight | 46 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Farm duty, Grain dryer, vane axial fan, three phase |
| Specification Number | 35E2501S055G1 |
| ENCLOSURE | TEAO |
| FRAME SIZE | 143TYZ |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 2 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 3 – 4.5 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 3600 |
| SPEED RPM | 3450 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 13.37 in |
| VOLTAGE | 208;230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 13-12/6 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | 84.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 6206 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F1 |
| Shaft Diameter | 0.8750 in |
| Inverter Duty | Not Inverter |
| UPC | 7.82E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 1319 |
| Style | |
| Discount Symbol | FD3 |
| Online Price | 882.39781 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
