Description

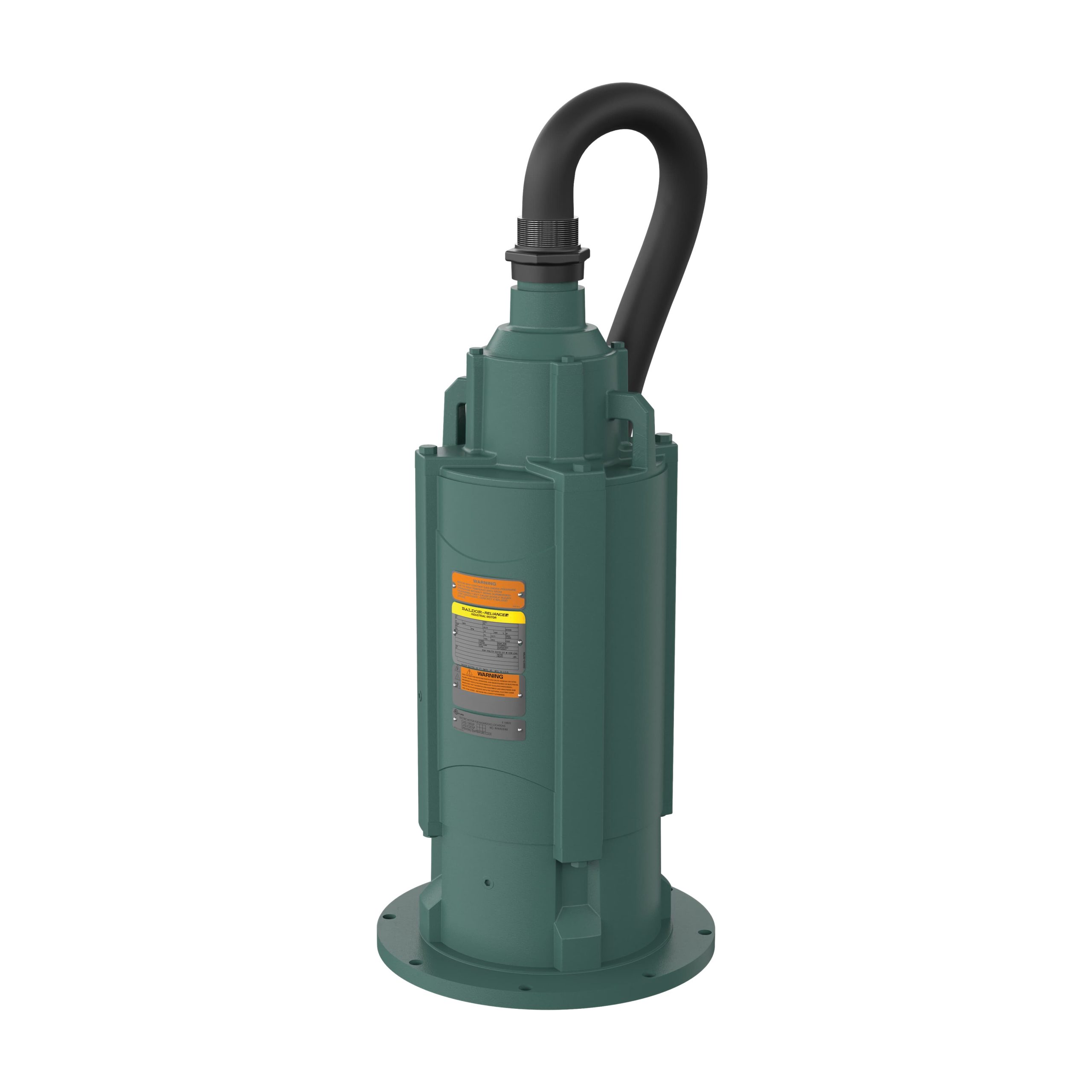

25 HP, 1200 RPM, Three Phase, 230/460V, 60HZ, XPNV, 250TY, V1
Additional information
| Weight | 560.001 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Submersible motors |
| Specification Number | S25-CWS0-0004 |
| ENCLOSURE | XPNV |
| FRAME SIZE | 250TY |
| AGENCY APPROVALS | CCSA US |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 6 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 25 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1200 |
| SPEED RPM | 1160 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 39.4 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 82/41 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | 86.70% |
| XP_GROUP | Class I, Group C & D |
| XP Temp Code | T3C |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 60BC03JPP30A |
| BEARING ODE | 40BC02JPG30A |
| AMBIENT TEMP | |
| Mount Type | V1 |
| Shaft Diameter | 1.7500 in |
| Inverter Duty | Not Inverter |
| UPC | 7.81569E+11 |
| Shaft Grounding | |
| IP Rating | NONE |
| List | 27666 |
| Style | |
| Discount Symbol | SU3 |
| Online Price | 18913.03092 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
