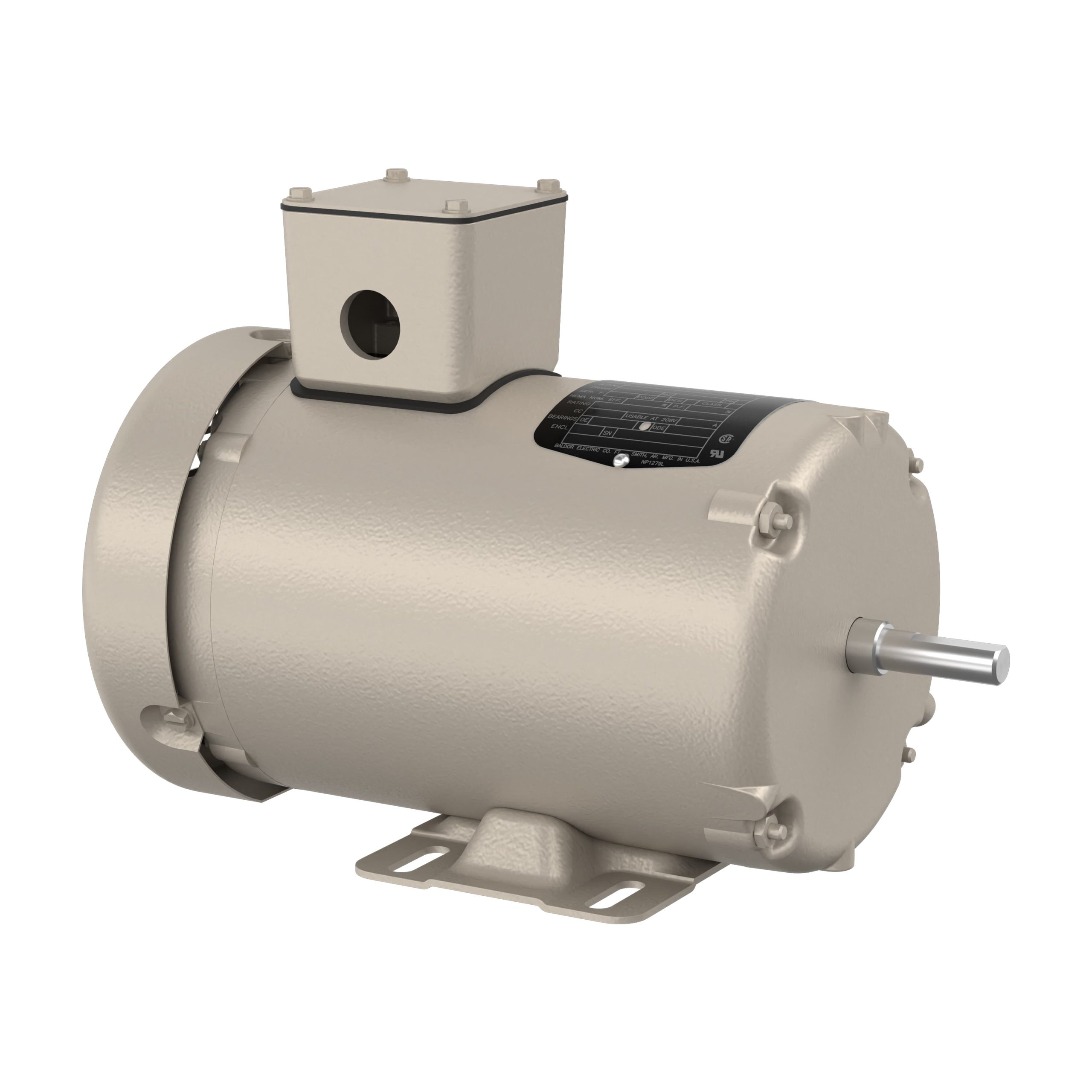

MPM3458
1/3 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 48, F3
SKU: MPM3458
Category: three phase
Description
1/3 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, TEFC, 48, F3
Additional information
| Weight | 20 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Metering pump, three phase |
| Specification Number | 34T27-4822 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 48 |
| AGENCY APPROVALS | CSA;UR |
| Frame Material | Steel |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | B |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1/3 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1725//1425 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 10.72 in |
| VOLTAGE | 230;400;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 50;60 |
| FULL LOAD CURRENT | 1.6/.8//1.8/.9 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | |
| RATED EFFICIENCY | 0% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 6203 |
| BEARING ODE | 6203 |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F3 |
| Shaft Diameter | 0.5000 in |
| Inverter Duty | Not Inverter |
| UPC | 7.82E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 644 |
| Style | |
| Discount Symbol | FD3 |
| Online Price | 430.82956 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
