Description

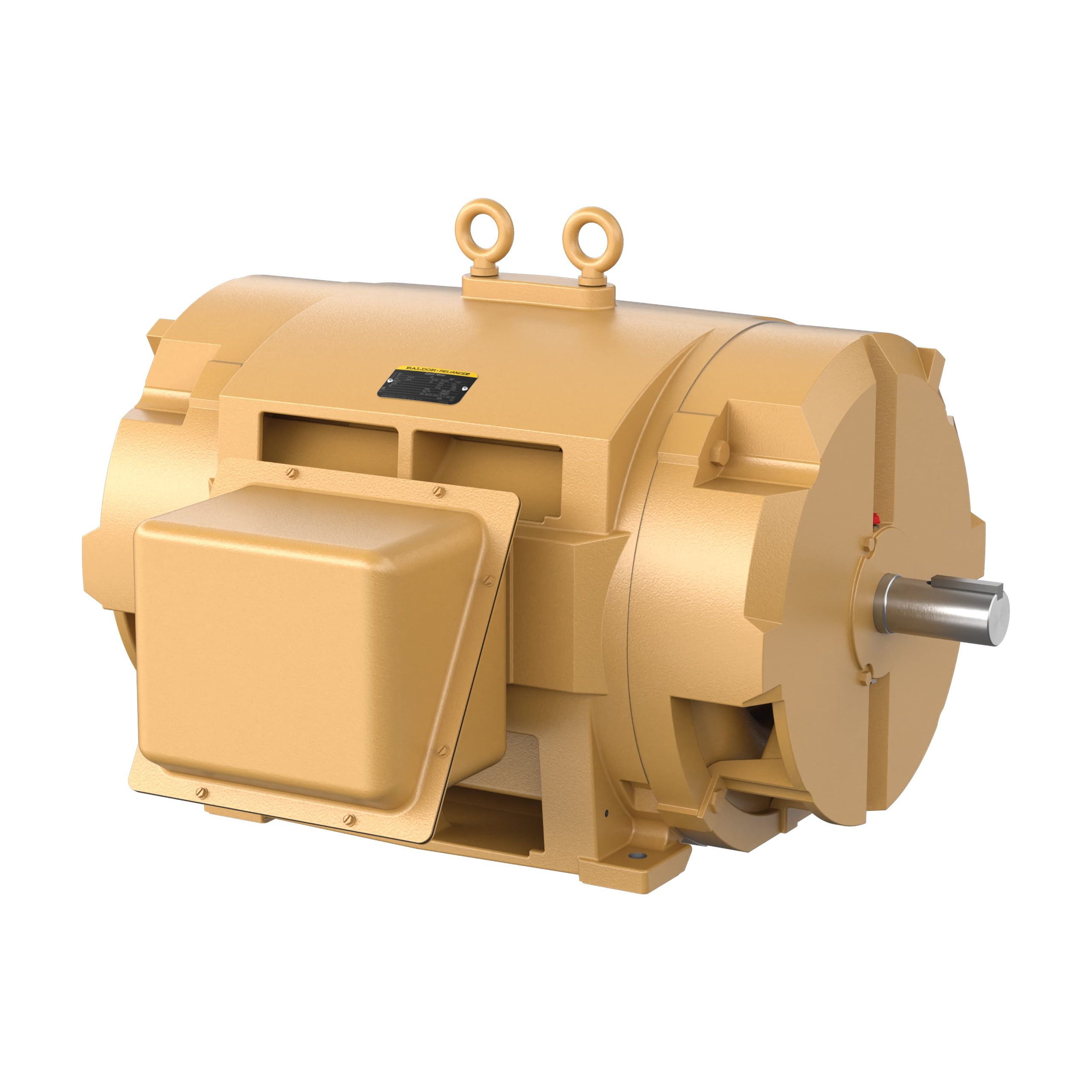

300 HP, 3600 RPM, Three Phase, 460V, 60HZ, DP, 447TS, F1
Additional information
| Weight | 1748.999 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Ammonia refrigeration comperssor motor |
| Specification Number | A44-6805-4106 |
| ENCLOSURE | DP |
| FRAME SIZE | 447TS |
| AGENCY APPROVALS | CCSAUSEEV |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 2 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 300 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 3600 |
| SPEED RPM | 3565 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 39.37 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 334 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 88 |
| RATED EFFICIENCY | 95.40% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 65BC03J30X |
| BEARING ODE | 65BC03J30X |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F1 |
| Shaft Diameter | 2.3750 in |
| Inverter Duty | Inverter Ready |
| UPC | 7.82E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 44878 |
| Style | |
| Discount Symbol | DPC |
| Online Price | 29008.24164 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
