Description

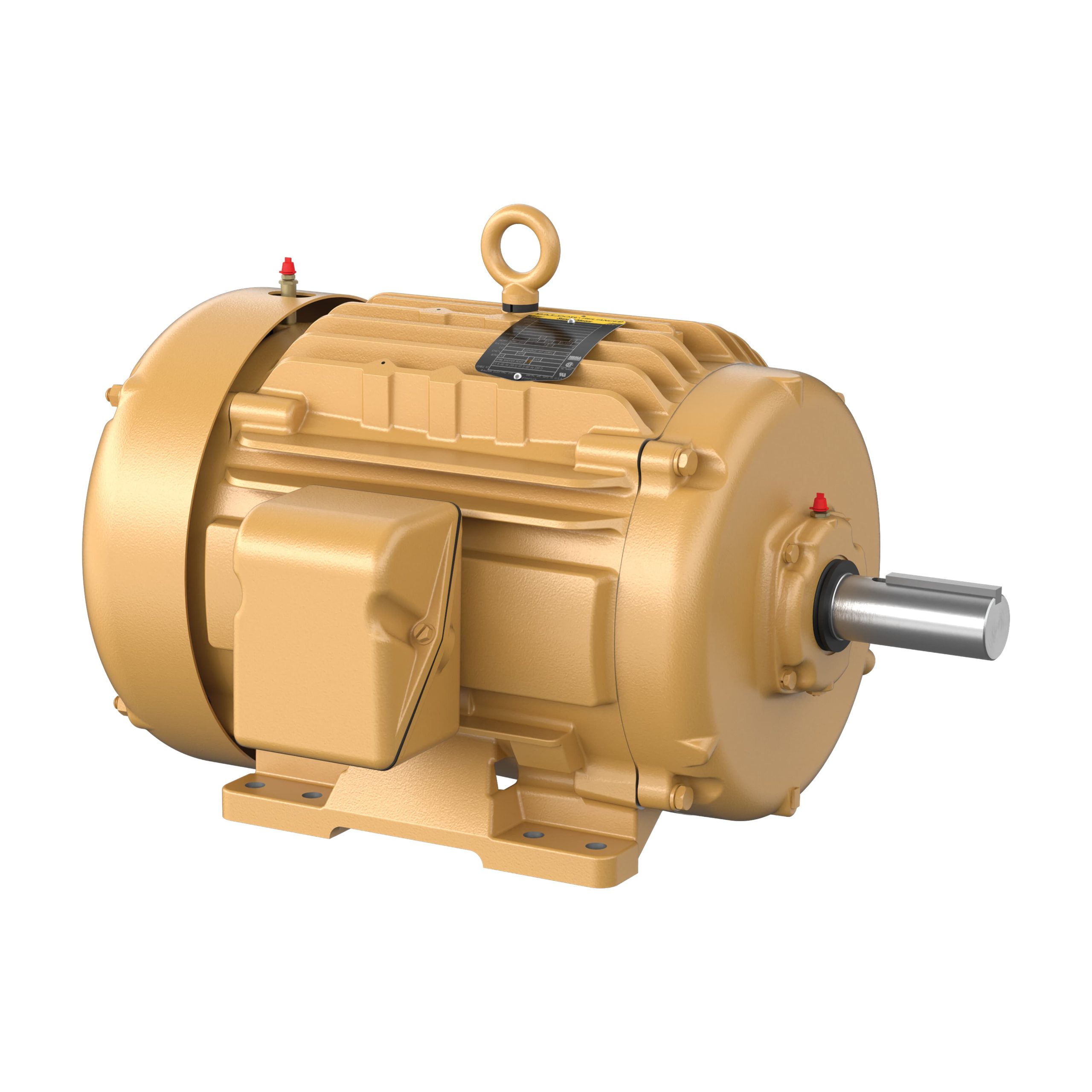

20 HP, 1800 RPM, Three Phase, 575V, 60HZ, TEFC, 256T, F1
Additional information
| Weight | 293 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | HVAC Motors, Inverter Duty, AEGIS Shaft Grounding Ring |
| Specification Number | 09J359T507G1 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 256T |
| AGENCY APPROVALS | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material | Iron |
| Conduit Box Material | Cast Iron |
| POLES | 4 |
| INSULATION CLASS | H |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 20 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1770 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 23.36 in |
| VOLTAGE | 575 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 19.2 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 83 |
| RATED EFFICIENCY | 93% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | STANDARD |
| Multispeed Code | Single Speed |
| NEMA DESIGN | A |
| BEARING DE | 6309 |
| BEARING ODE | 6208 |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F1 |
| Shaft Diameter | 1.6250 in |
| Inverter Duty | Inverter Ready |
| UPC | 7.82E+11 |
| Shaft Grounding | Shaft Grounding |
| IP Rating | |
| List | 5087 |
| Style | |
| Discount Symbol | HV3 |
| Online Price | 3288.13506 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
