Description

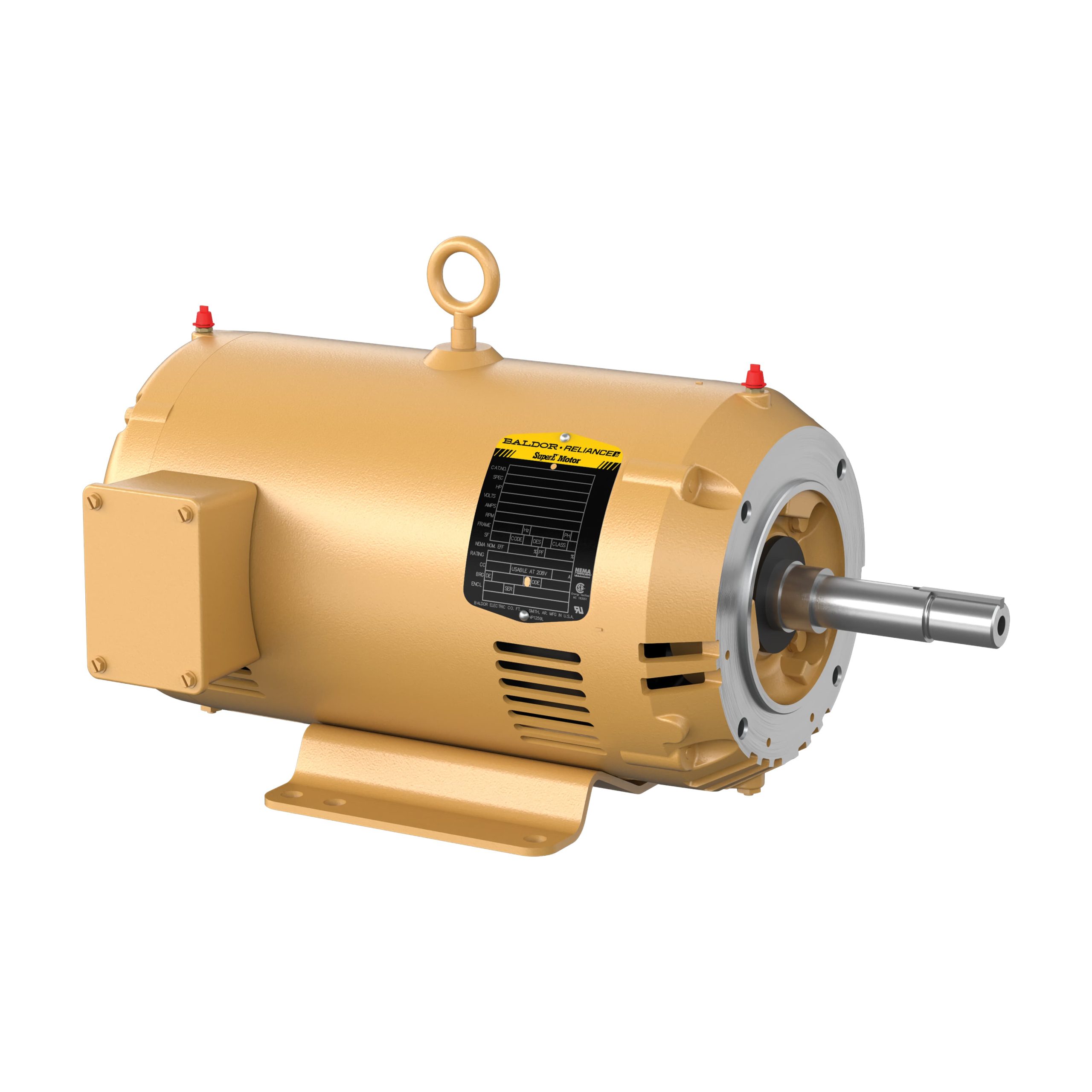

5 HP, 1800 RPM, Three Phase, 575V, 60HZ, OPSB, 184JM, F1
Additional information
| Weight | 90 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Close-coupled pump, three phase |
| Specification Number | 36H823S594G1 |
| ENCLOSURE | OPSB |
| FRAME SIZE | 184JM |
| AGENCY APPROVALS | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 5 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1750 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 18 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 5.3 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 80 |
| RATED EFFICIENCY | 89.50% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 6207 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.8750 in |
| Inverter Duty | Inverter Ready |
| UPC | 7.81568E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 1969 |
| Style | |
| Discount Symbol | PC3 |
| Online Price | 1272.72222 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
