Description

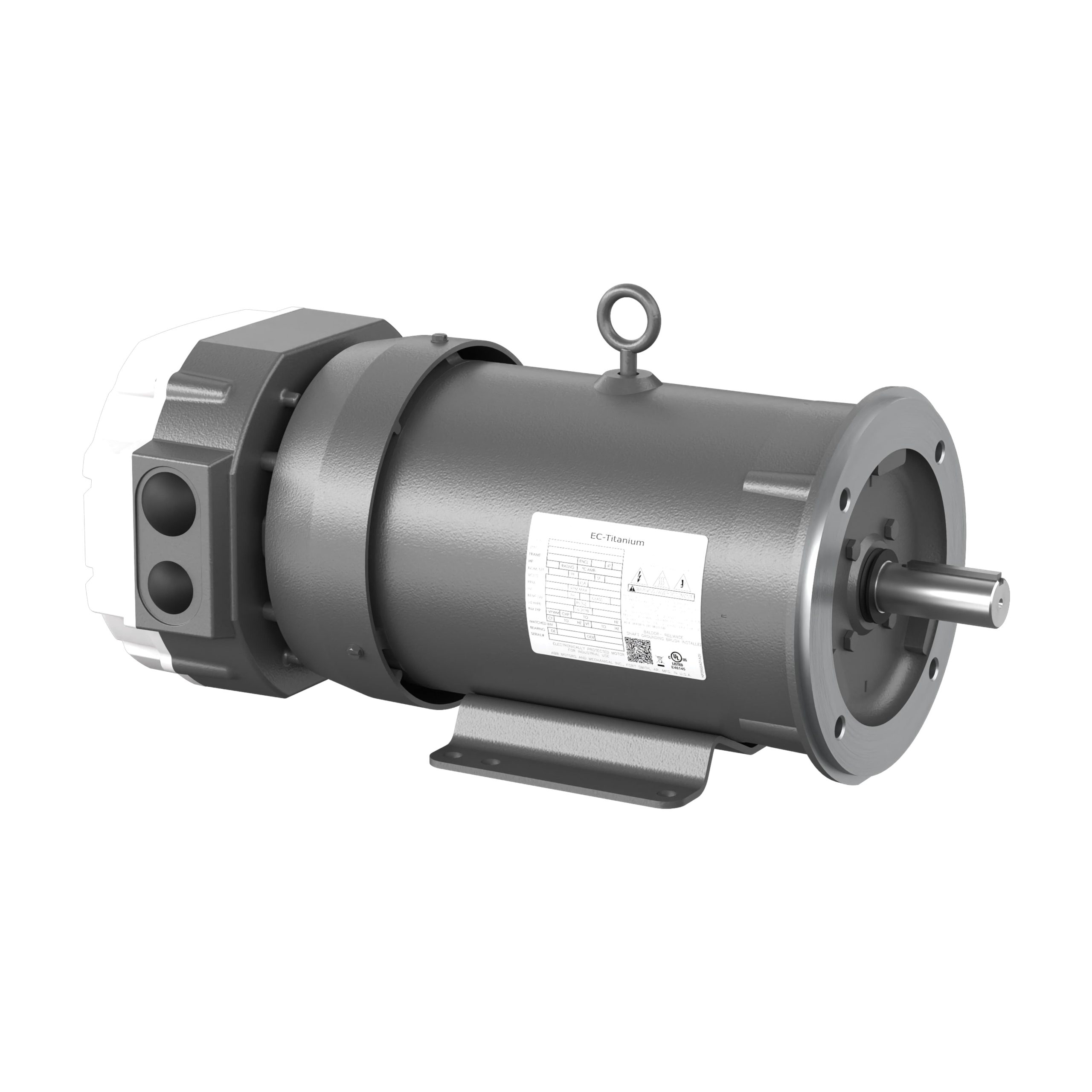

7.5 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, 184TC, F1
Additional information
| Weight | 151 lbs |
|---|---|
| Brand | Baldor-Reliance? |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | EC Titanium integrated motor-drive |
| Specification Number | 36-0001553 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 184TC |
| AGENCY APPROVALS | BLUETOOTH;CULUS;WEEE |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | No Mounting |
| HORSEPOWER | 7.5 HP |
| SERVICE FACTOR | 1 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | https://www.baldor.com/api/products/ECS100A4H7EB4/infopacket |
| Synchronous RPM | 1800 |
| SPEED RPM | 1800 |
| Base Speed | 1800 |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 23.76 in |
| VOLTAGE | 460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 94 |
| RATED EFFICIENCY | 94% |
| XP_GROUP | |
| XP Temp Code | |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | – |
| BEARING DE | 6206 |
| BEARING ODE | 6205 |
| AMBIENT TEMP | 40 ?C |
| Mount Type | F1 |
| Shaft Diameter | 1.1250 in |
| Inverter Duty | Inverter Duty |
| UPC | 7.82E+11 |
| Shaft Grounding | Shaft Grounding |
| IP Rating | NONE |
| List | 4486 |
| Style | |
| Discount Symbol | EC3 |
| Online Price | 3299.40814 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
