Description

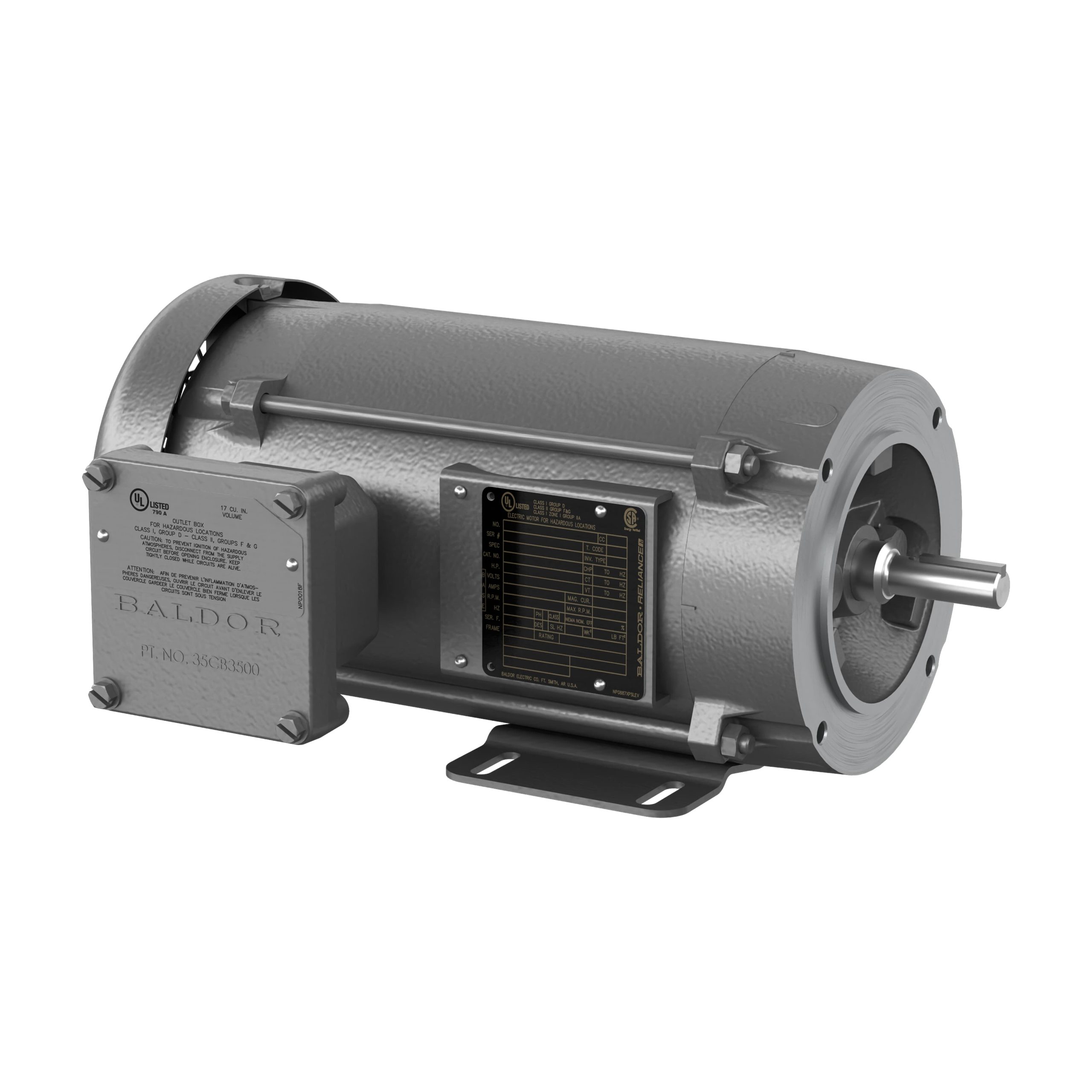

1/3 HP, 1800 RPM, Three Phase, 230/460V, 60HZ, XPFC, 56C, F1
Additional information
| Weight | 37 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Explosion Proof, General purpose, three phase |
| Specification Number | 35-0000-1380 |
| ENCLOSURE | XPFC |
| FRAME SIZE | 56C |
| AGENCY APPROVALS | CSA EEV;UL |
| Frame Material | Steel |
| Conduit Box Material | Steel |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 1/3 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1780//1480 |
| Base Speed | |
| Max Speed | 2700 |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 14.3 in |
| VOLTAGE | 230 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 50;60 |
| FULL LOAD CURRENT | 1.7/0.85//1.5/0.75 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 49 |
| RATED EFFICIENCY | 80% |
| XP_GROUP | Class I, Group D, Class II, Group F & G |
| XP Temp Code | T3C |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | |
| BEARING ODE | |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 0.6250 in |
| Inverter Duty | Inverter Duty |
| UPC | 7.81569E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | NONE |
| List | 1230 |
| Style | |
| Discount Symbol | XPM |
| Online Price | 795.0474 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
