Description

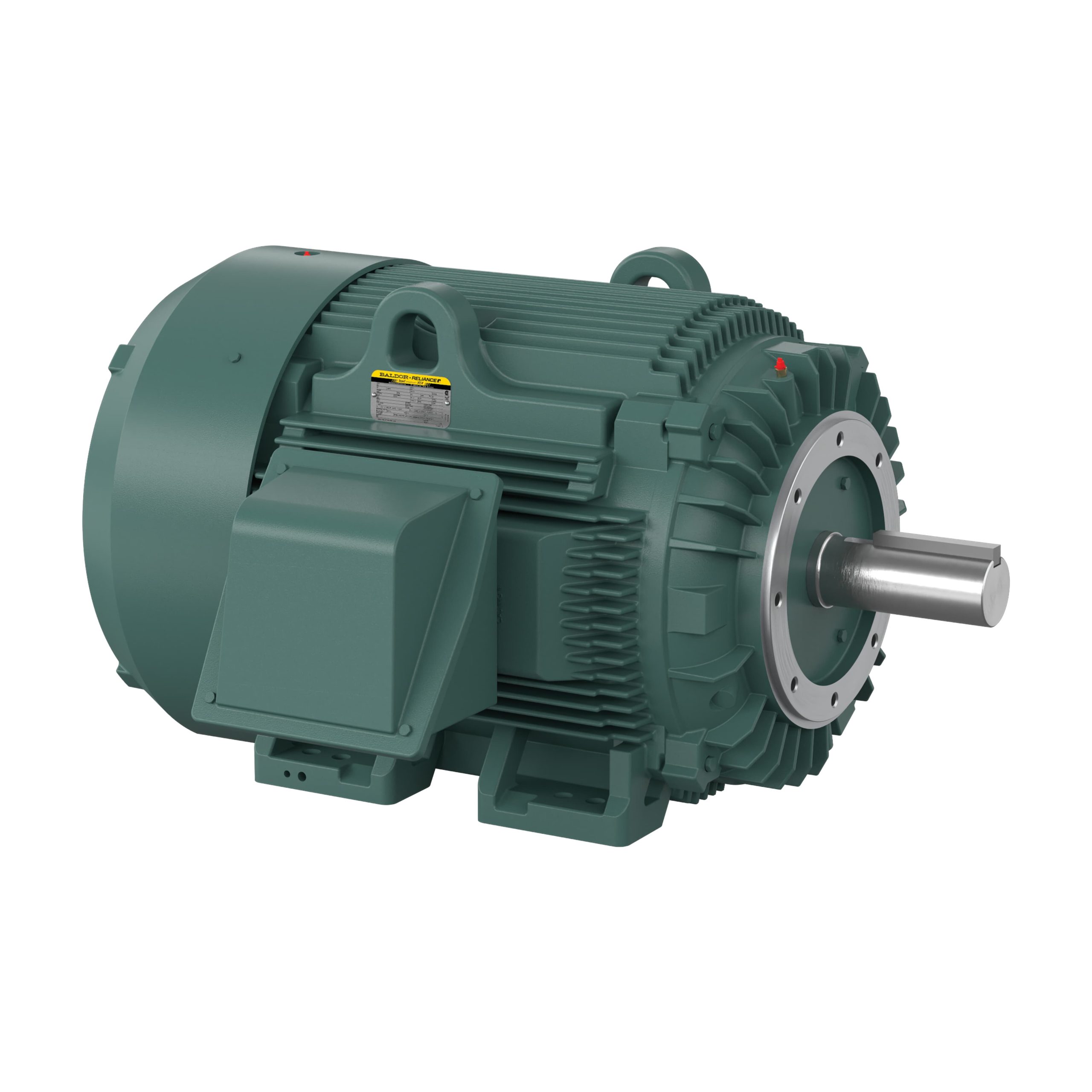

100 HP, 1800 RPM, Three Phase, 460V, 60HZ, TEFC, 405TC, F1
Additional information
| Weight | 1388 lbs |
|---|---|
| Brand | Baldor-Reliance® |
| PRODUCT FAMILY | AC Motors |
| PRODUCT LINE | Severe Duty XEX |
| Specification Number | A40-4928-0664 |
| ENCLOSURE | TEFC |
| FRAME SIZE | 405TC |
| AGENCY APPROVALS | CCSAUSEEV |
| Frame Material | Iron |
| Conduit Box Material | |
| POLES | 4 |
| INSULATION CLASS | F |
| SHAFT ROTATION | Reversible |
| BASE | Rigid |
| HORSEPOWER | 100 HP |
| SERVICE FACTOR | 1.15 |
| DUTY CYCLE | Continuous |
| Product URL | |
| INFO PACKET | |
| Synchronous RPM | 1800 |
| SPEED RPM | 1785 |
| Base Speed | |
| Max Speed | |
| IEC OR NEMA STANDARD | NEMA |
| OVERALL LENGTH | 38.2 in |
| VOLTAGE | 230;460 |
| Armature Voltage | |
| Field Voltage | |
| PHASE | Three Phase |
| FREQUENCY | 60 |
| FULL LOAD CURRENT | 112 |
| Armature Current | |
| Field Current | |
| Armature Inertia | |
| Brushes | |
| POWER FACTOR | 87 |
| RATED EFFICIENCY | 95.40% |
| XP_GROUP | |
| XP Temp Code | T2D |
| End Plate (DE) | C-FACE |
| Multispeed Code | Single Speed |
| NEMA DESIGN | B |
| BEARING DE | 6316 |
| BEARING ODE | 6316 |
| AMBIENT TEMP | 40 °C |
| Mount Type | F1 |
| Shaft Diameter | 2.8750 in |
| Inverter Duty | Inverter Ready |
| UPC | 7.81569E+11 |
| Shaft Grounding | No Shaft Grounding |
| IP Rating | |
| List | 25036 |
| Style | |
| Discount Symbol | SDM |
| Online Price | 16948.62092 |
| Typically Ships | 1-2 Days |
| Shipping Price | Additional |
